Connect SERIES

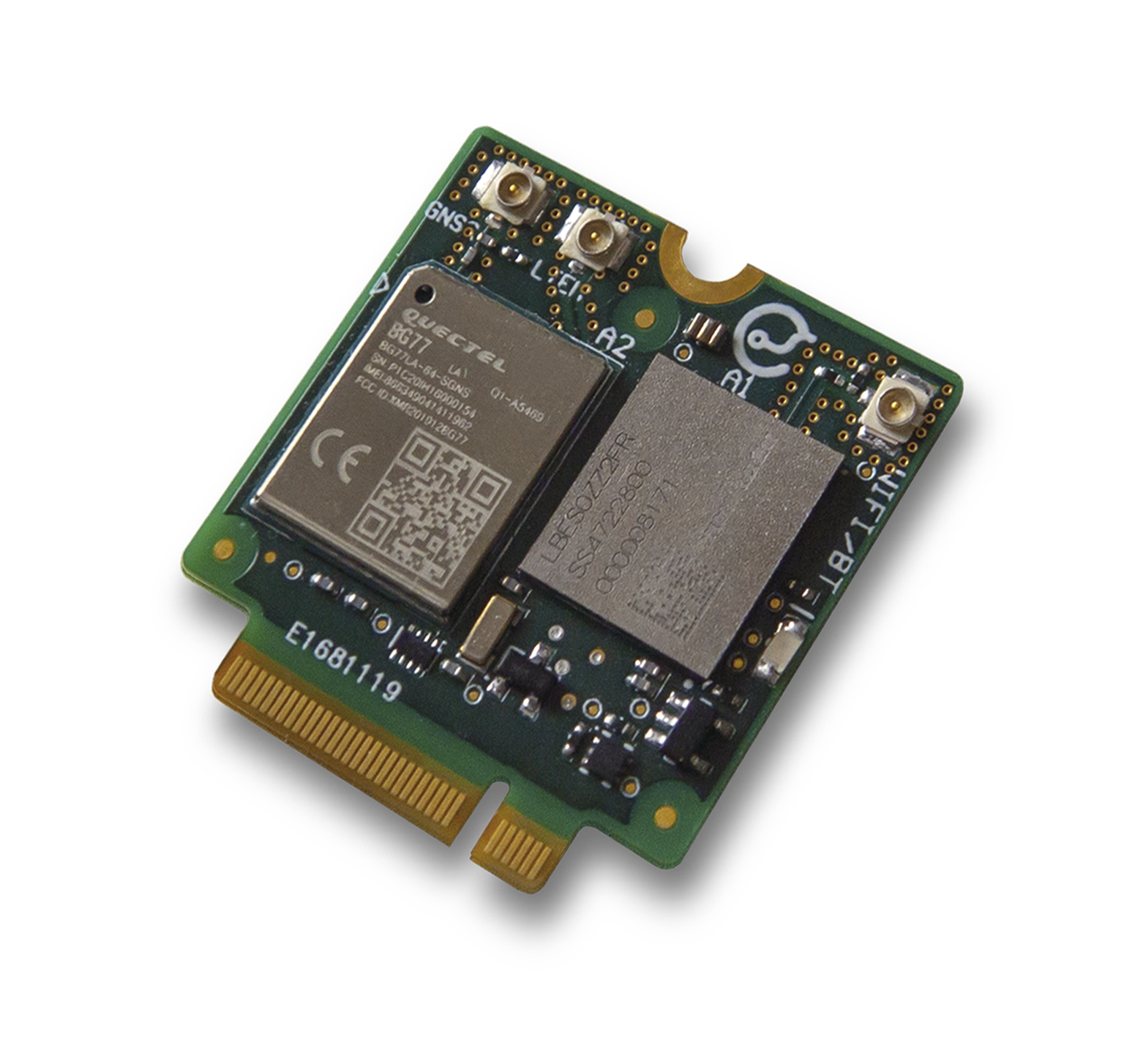

RW612 Module is a M.2 2230 format board based in an RW612 processor with on chip root of trust. Multiple interfaces such as USB, SD and RMII make this module suitable for different applications.
This module adds wireless communications based on Wifi 6, Bluetooth 4.0 and LTE-M/Nb-IoT/GNSS protocols.
IMXRT Module is a M.2 2230 format board based in an IMXRT 1052 processor with a Plug and Trust device to provide a root of trust at IC level. Multiple interfaces such as LCD, USB, CSI, SD and RMII make this module suitable for different applications.
This module adds wireless communications based on LTE-M/Nb-IoT/GNSS protocols.
This module adds wireless communications based on Wifi 6, Bluetooth 4.0 and LTE-M/Nb-IoT/GNSS protocols.
Overview

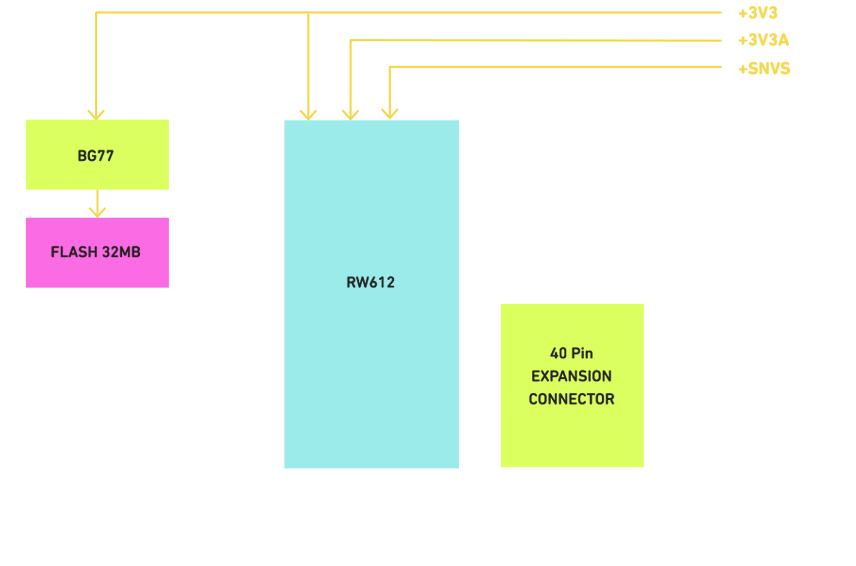

Module features
- IMXRT 1052 processor, based on Arm Cortex-M7 MPCore Platform.
- Different options for RAM/FLASH
- EdgeLock SE050 secure element for secure communicatios.
- M.2 Interface, 2230 Form Factor with expansion connector
- Standard interfaces sucha as GPIO, Ethernet (RMII/MDIO), I2C, SPI, UART
- Camera input via MIPI
- Display output via parallel LCD
- Wireless communications
- 2.4GHz Wifi module

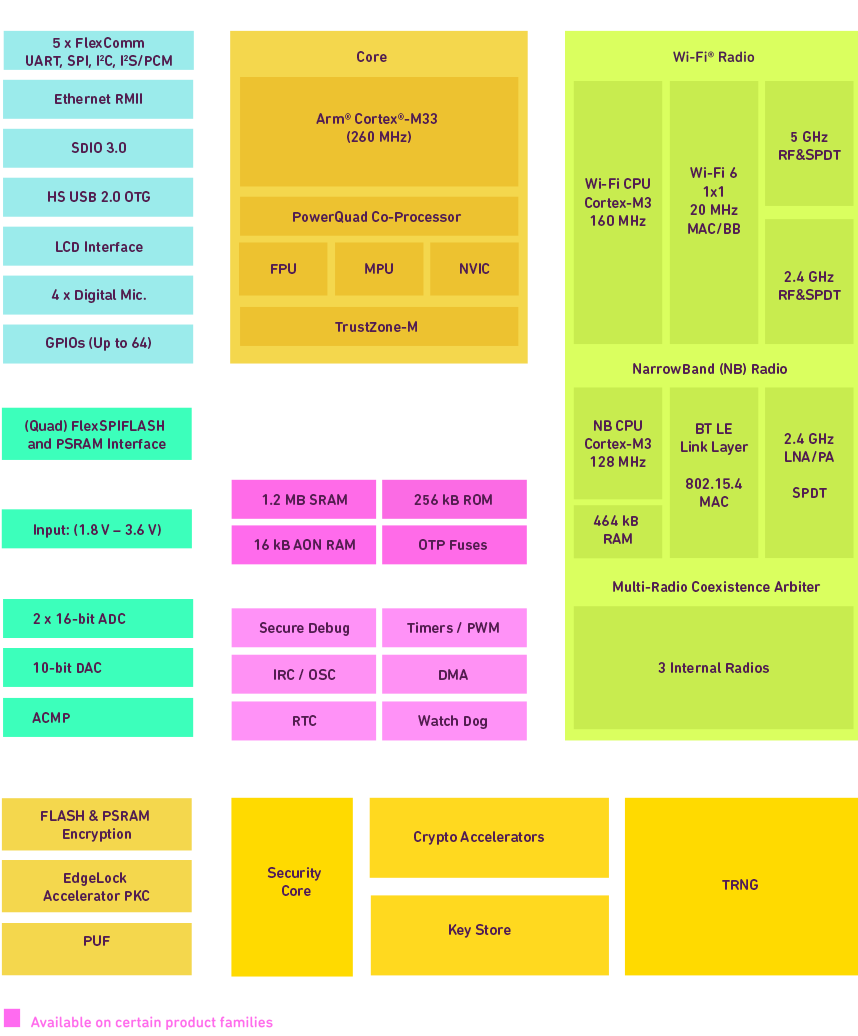

Processor features
- 260 MHz Arm Cortex-M33 with TrustZone-M
- On-chip 1.2 MB SRAM
- Quad FlexSPI Flash XIP with on-the-fly decryption
- PSRAM interface for memory expansion
- Up to 5 Flexcomm (configurable as SPI/I²C/I²S/UART)
- IEEE 1588 RMII/Fast Ethernet interface
- NXP EdgeLock™ Assurance program
- Hardware root of trust
- Trusted Execution Environment based on Arm TrustZone-M
- NXP EdgeLock 2GO Trust Provisioning
- Secure boot, debug and software update
- Hardware cryptography
- Physical unclonable function (PUF) secure key management
- SESIP Assurance Level 3 (SESIP3)
- PSA Certified Level 3
- 1×1, 20 MHz, IEEE 802.11ax, 2.4 GHz/5 GHz
- Target wake time, dual carrier modulation and extended range
- Integrated Wi-Fi PA, LNA, and T/R switch, up to +21 dBm Tx power
- WPA 3 security
- Matter over Wi-Fi
- Supports Bluetooth 5.2 features
- Bluetooth 5.4 certified
- Bluetooth LE 2 Mbps high-speed mode, long range and advertising extensions
- I²S and PCM audio interfaces
- 802.15.4 supporting Thread
- Matter over Thread
- Integrated PA / LNA with up to +15 dBm Tx output
| Type | Qty | Input/Output |
|---|---|---|
| GPIO | 17 | I/O |
| UART | 1 | I/O |
| I2C | 1 | I/O |
| USB | 1 | I/O |
| SD | 1 | I/O |
| RMI/MDIO | 1 | I/O |
Peripherals and Gpios
SDK software makes the pin
configuration described in the table.
Other configurations are possible just
changing processor pin muxing.
| Code | Description |
|---|---|
| BAR0422 | M.2 Connect module Processor RW612 Type 2FR Murata WiFi + BT 16MB Flash On chip EdgeLock secure element |
| BAR0622 | M.2 Connect module Processor RW612 Type 2FR Murata WiFi + BT 32MB Flash On chip EdgeLock secure element |
| BAR0423 | M.2 Connect module Processor RW612 Type 2FR Murata WiFi + BT + Modem BG77-GNSS 16MB On chip EdgeLock secure element |
Ordering
The standard part number are shown
in this table. Other configurations are
available under demand.
